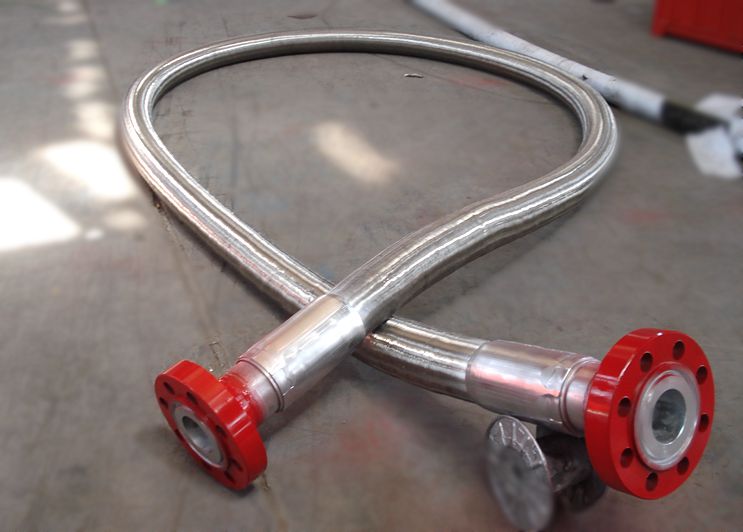

The Features of Choke and Kill Hose


  • Applicability:  Flexible line connection in the choke manifold and kill manifold system.
  • Temperature: -20℃~+121℃ (Grade B+U)
  • Tube: Nitrile rubber, resistant to oil, abrasion, acid & alkali.
  • Reinforcement: 2-8 layers of single high strength steel wire spiral.
  • Cover: Neoprene, resistant to oil, abrasion and low temperature, weather proof and anti-aging.
  • Armor: Stainless steel armor.
  • Connection: Welded or integral union, flange or clamp connection form. Special type can be available upon customer's request.
  • Optional: Accessories such as safety chain or clamp and hose lift eye & collar clamp are available.
  • Standard: API Spec 16C, the scope of the license includes the following product: Flexible Choke and Kill Lines


Main parameter of Choke and Kill Hose

I.D.

in.  (mm)

O.D.

mm

W.P.

psi

T.P.

psi

Min bending radius

m

Referance weight

kg/m

2      (50.8) 99 34.5 69.0 1.2 15.0
2½   (63.5) 115 34.5 69.0 1.2 19.6
3      (76.2) 133 34.5 69.0 1.6 24.9
3½   (88.9) 146 34.5 69.0 1.7 27.8
4    (101.6) 169 34.5 69.0 1.7 41.6
2      (50.8) 108 34.5 69.0 1.4 19.2
2½   (63.5) 130 34.5 69.0 1.4 30.2
3      (76.2) 146 34.5 69.0 1.7 35.0
4    (101.6) 183 34.5 69.0 1.8 55.3
2      (50.8) 118 34.5 69.0 1.6 26.2
2½   (63.5) 146 34.5 69.0 1.6 41.8
3      (76.2) 160 34.5 69.0 1.6 50.6
